Pinholio - the Self Developing Pinhole Camera DIGITAL DOWNLOAD VERSION
THIS IS THE DIGITAL DOWNLOAD VERSION OF THE PINHOLIO.
The physical product is here: https://www.cameradactyl.com/buttergrip/pinholio
The CAMERADACTYL Pinholio Self Developing Pinhole Camera was born as a proof of concept for the Homemade Camera Podcast Self Developing Camera Challenge. (http://homemadecamera.com/e31-afghan-box-cameras/) . It came out nice enough that we’re offering it as a neat little product.

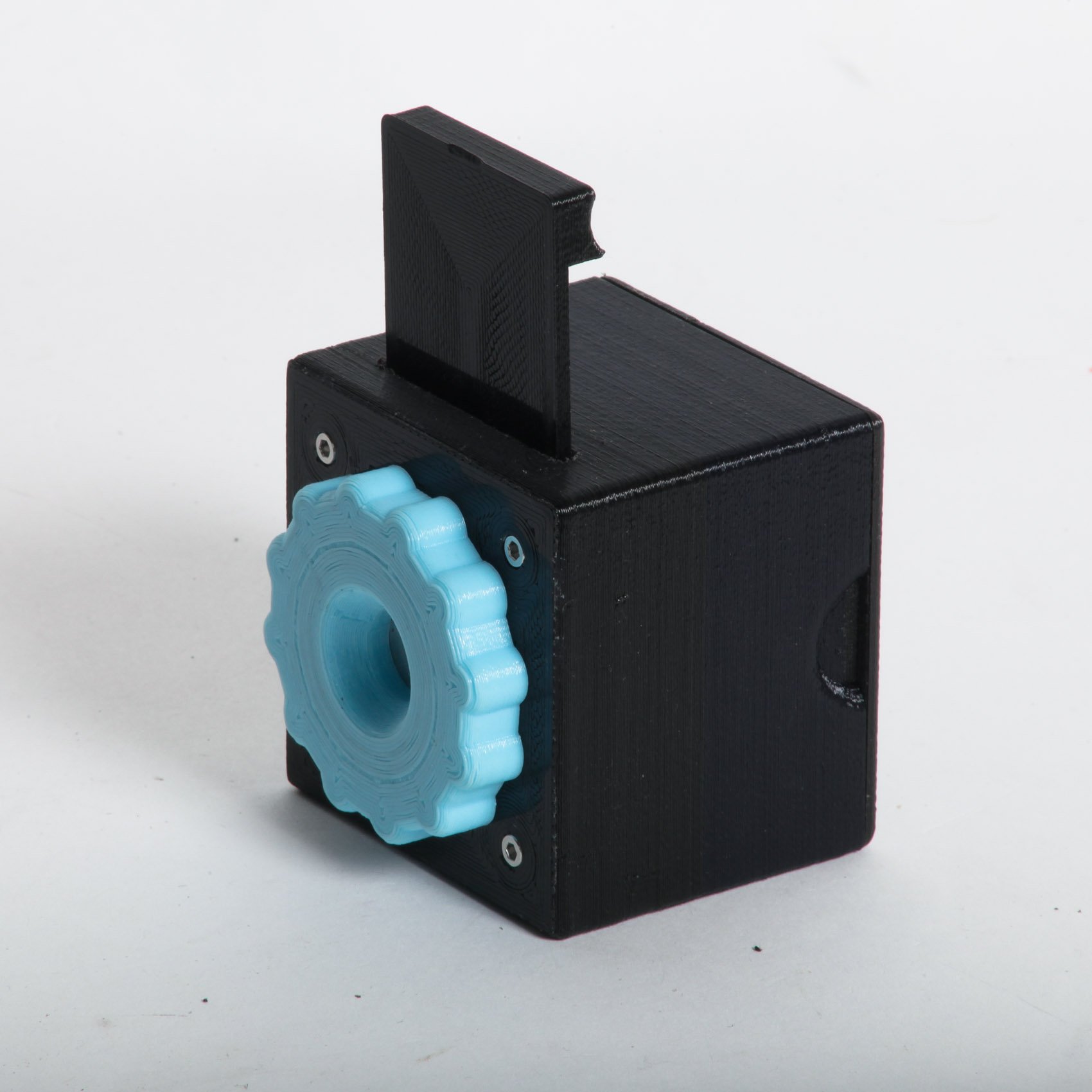

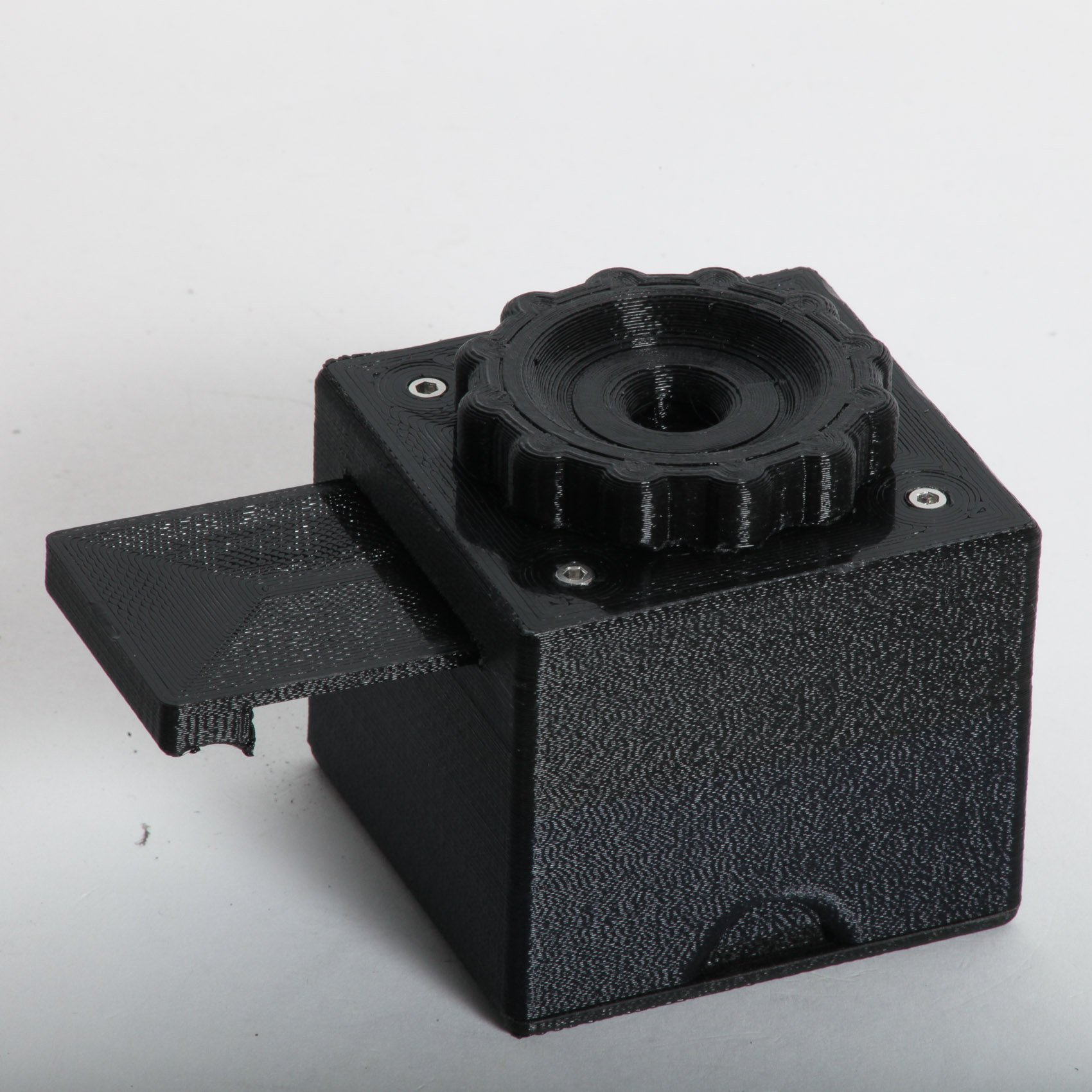

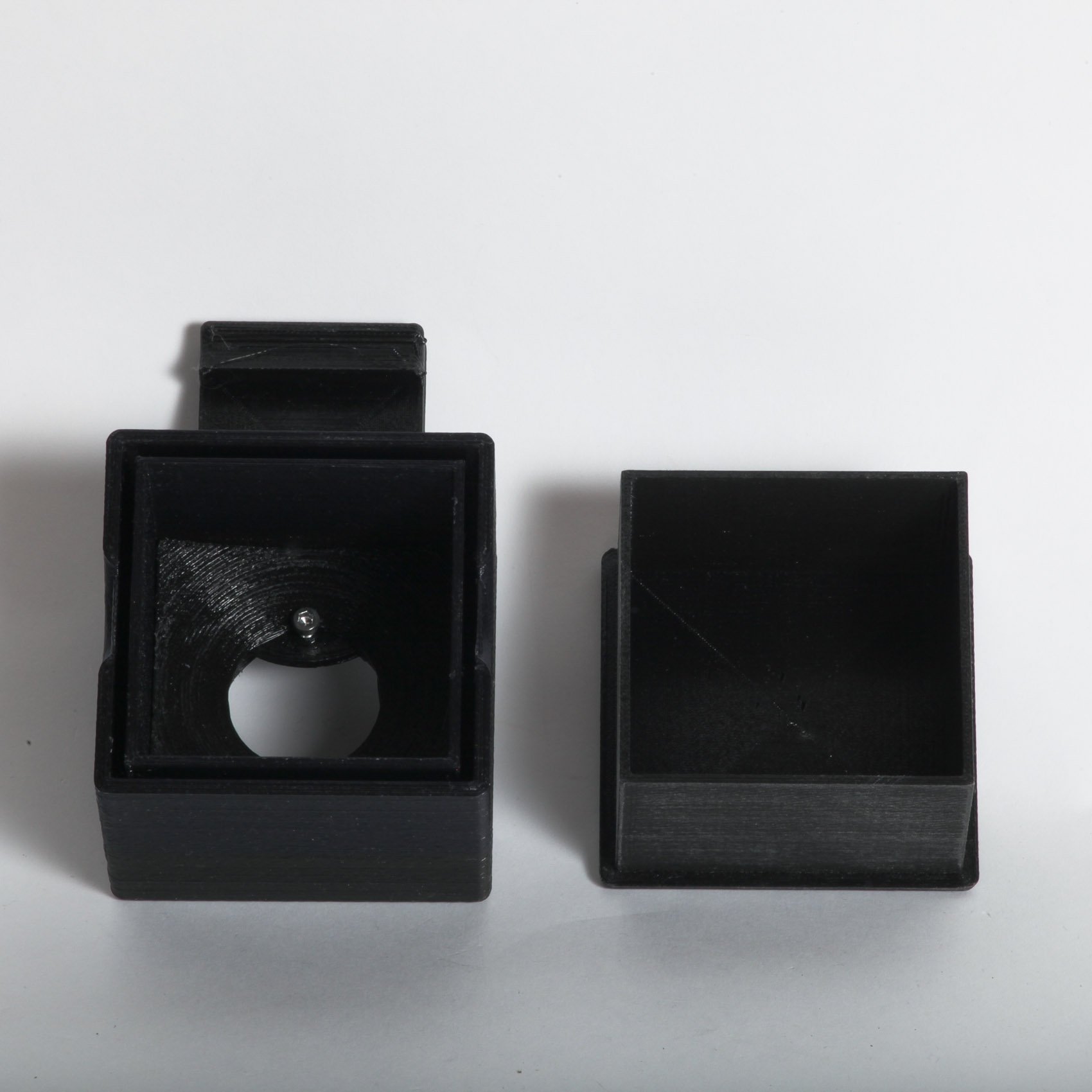

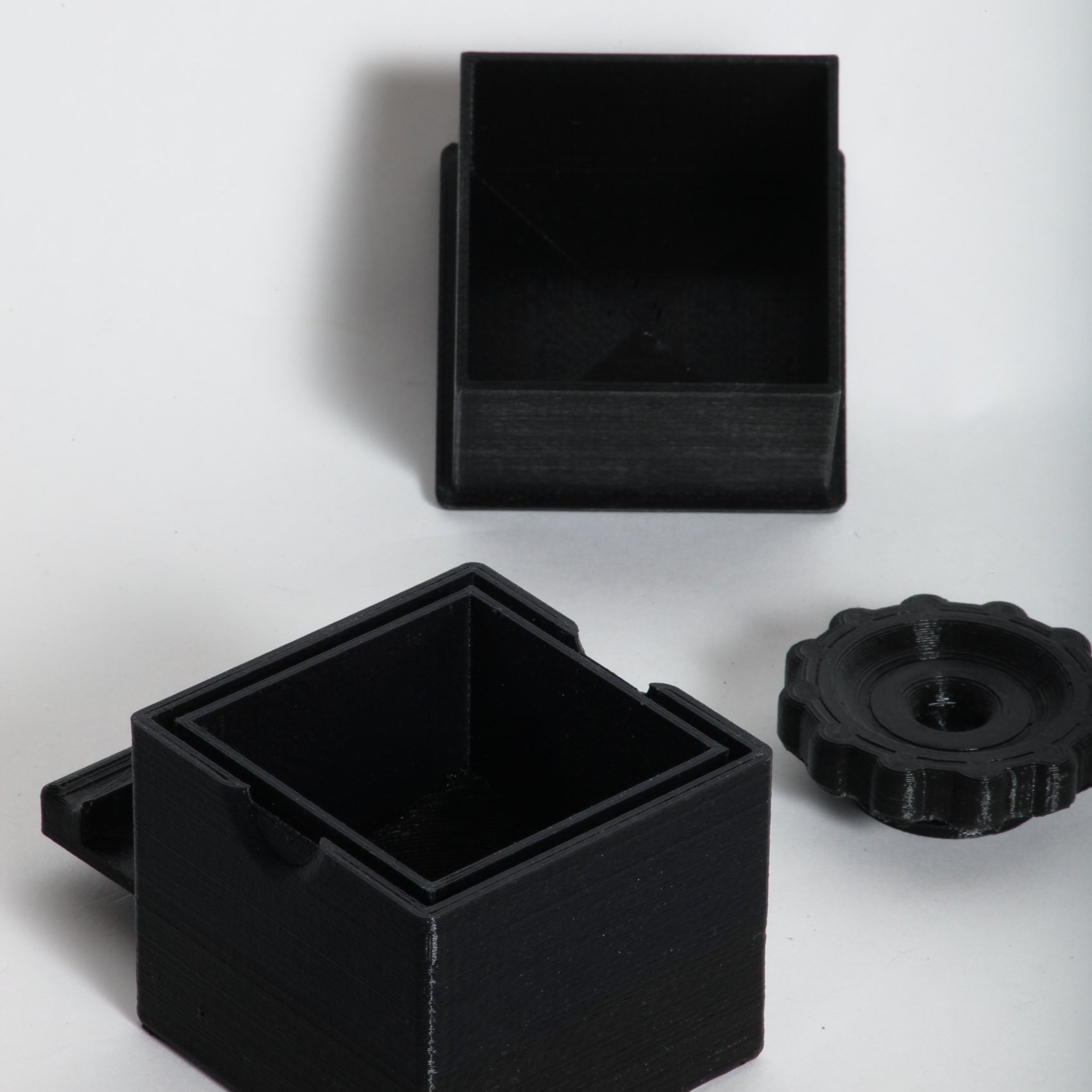

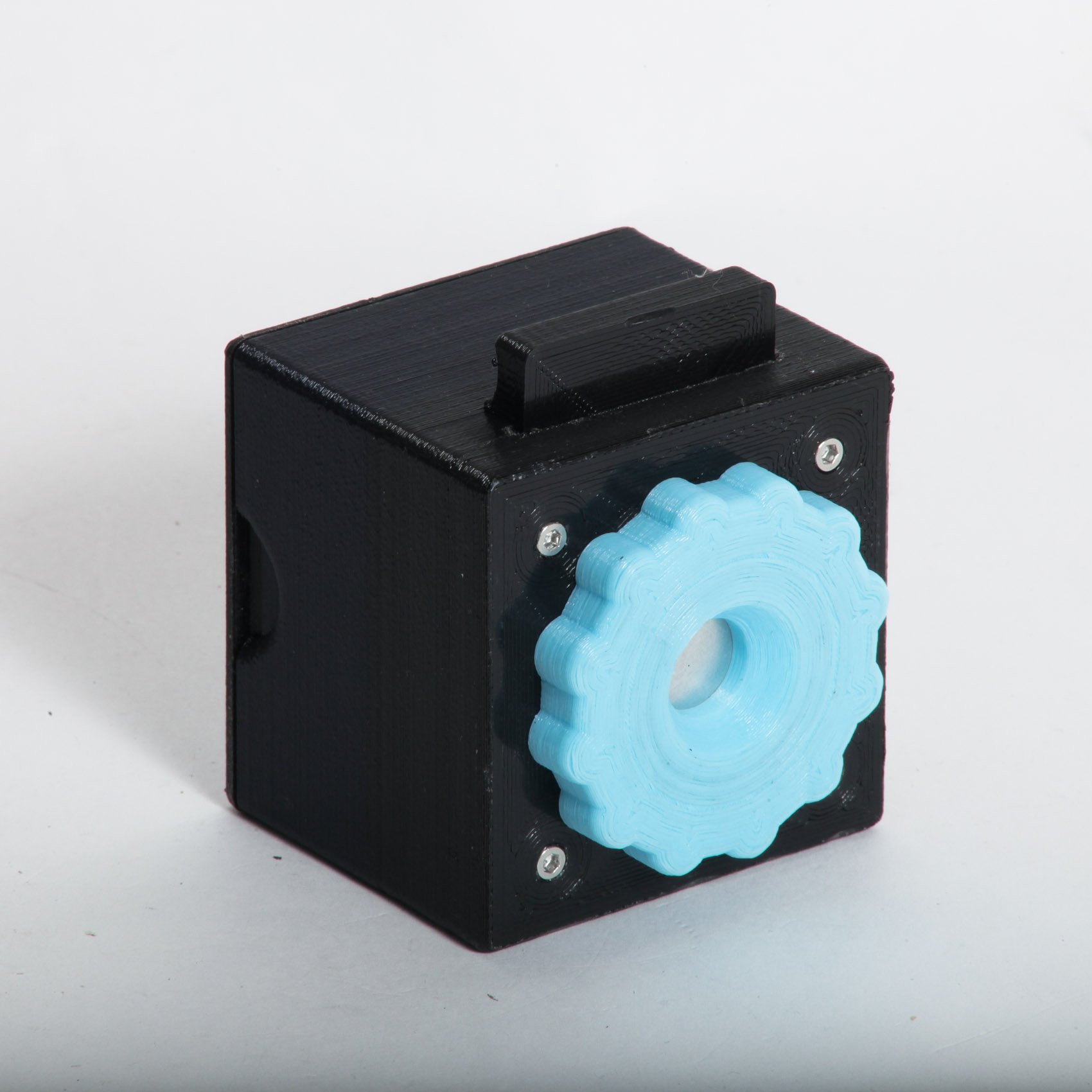

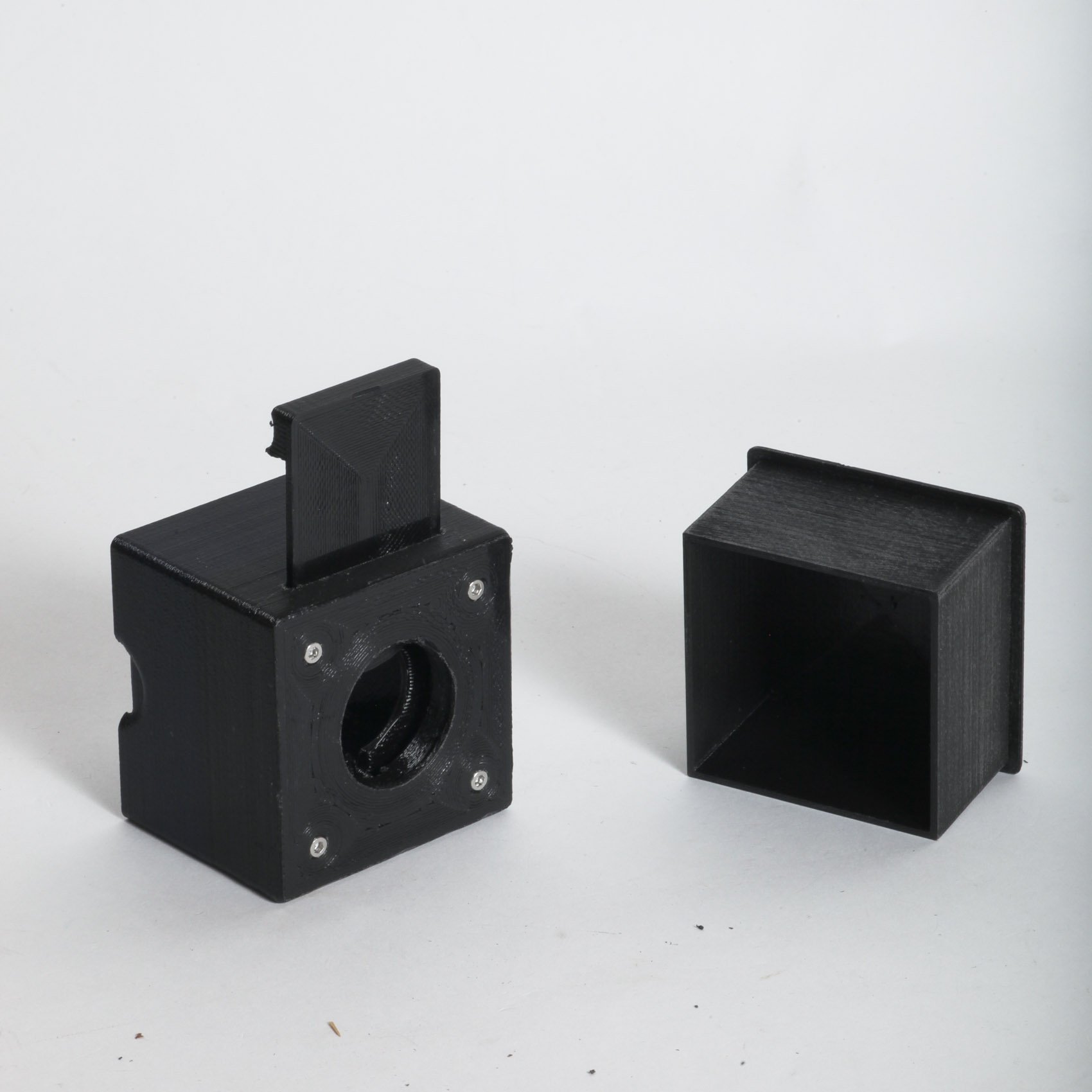

This is a pinhole camera that shoots on 2 1/4” square paper, and has an internal dark slide, such that the camera can be closed, and the pinhole swapped for a developing tank light baffle, and the print / paper negative can be developed inside the camera in daylight. No darkroom required.
Each camera comes with a colored pinhole cap (with precision drilled 0.2mm pinhole ~ f/250); and one black light baffle cap. The pinhole is removable and replaceable with a bit of gaffers tape. The focal length of the camera is just about 50mm.
Available as a single camera, or a set of three. Sets of three may be ordered in three individual colors.
CLICK HERE TO SEE THIS CAMERA IN ACTION!
These files are for PERSONAL USE. you can print as many as you want for YOURSELF. You may not sell, distribute, or alter these files, nor sell physical goods made from them. If you would like to make and sell physical products, please send me an email!
Slicer Settings:
0.3mm layer height
0.4mm nozzle
no brim, no support
4 shell layers, top, bottom, and side walls
35% rectilinear infill
All files oriented correctly towards the bed for printing.
Turn ON avoid crossing perimeters.
THIS IS THE DIGITAL DOWNLOAD VERSION OF THE PINHOLIO.
The physical product is here: https://www.cameradactyl.com/buttergrip/pinholio
The CAMERADACTYL Pinholio Self Developing Pinhole Camera was born as a proof of concept for the Homemade Camera Podcast Self Developing Camera Challenge. (http://homemadecamera.com/e31-afghan-box-cameras/) . It came out nice enough that we’re offering it as a neat little product.
This is a pinhole camera that shoots on 2 1/4” square paper, and has an internal dark slide, such that the camera can be closed, and the pinhole swapped for a developing tank light baffle, and the print / paper negative can be developed inside the camera in daylight. No darkroom required.
Each camera comes with a colored pinhole cap (with precision drilled 0.2mm pinhole ~ f/250); and one black light baffle cap. The pinhole is removable and replaceable with a bit of gaffers tape. The focal length of the camera is just about 50mm.
Available as a single camera, or a set of three. Sets of three may be ordered in three individual colors.
CLICK HERE TO SEE THIS CAMERA IN ACTION!
These files are for PERSONAL USE. you can print as many as you want for YOURSELF. You may not sell, distribute, or alter these files, nor sell physical goods made from them. If you would like to make and sell physical products, please send me an email!
Slicer Settings:
0.3mm layer height
0.4mm nozzle
no brim, no support
4 shell layers, top, bottom, and side walls
35% rectilinear infill
All files oriented correctly towards the bed for printing.
Turn ON avoid crossing perimeters.
THIS IS THE DIGITAL DOWNLOAD VERSION OF THE PINHOLIO.
The physical product is here: https://www.cameradactyl.com/buttergrip/pinholio
The CAMERADACTYL Pinholio Self Developing Pinhole Camera was born as a proof of concept for the Homemade Camera Podcast Self Developing Camera Challenge. (http://homemadecamera.com/e31-afghan-box-cameras/) . It came out nice enough that we’re offering it as a neat little product.
This is a pinhole camera that shoots on 2 1/4” square paper, and has an internal dark slide, such that the camera can be closed, and the pinhole swapped for a developing tank light baffle, and the print / paper negative can be developed inside the camera in daylight. No darkroom required.
Each camera comes with a colored pinhole cap (with precision drilled 0.2mm pinhole ~ f/250); and one black light baffle cap. The pinhole is removable and replaceable with a bit of gaffers tape. The focal length of the camera is just about 50mm.
Available as a single camera, or a set of three. Sets of three may be ordered in three individual colors.
CLICK HERE TO SEE THIS CAMERA IN ACTION!
These files are for PERSONAL USE. you can print as many as you want for YOURSELF. You may not sell, distribute, or alter these files, nor sell physical goods made from them. If you would like to make and sell physical products, please send me an email!
Slicer Settings:
0.3mm layer height
0.4mm nozzle
no brim, no support
4 shell layers, top, bottom, and side walls
35% rectilinear infill
All files oriented correctly towards the bed for printing.
Turn ON avoid crossing perimeters.
This is the assembly video for the PINHOLIO:
This is the original video of the pinholio:
